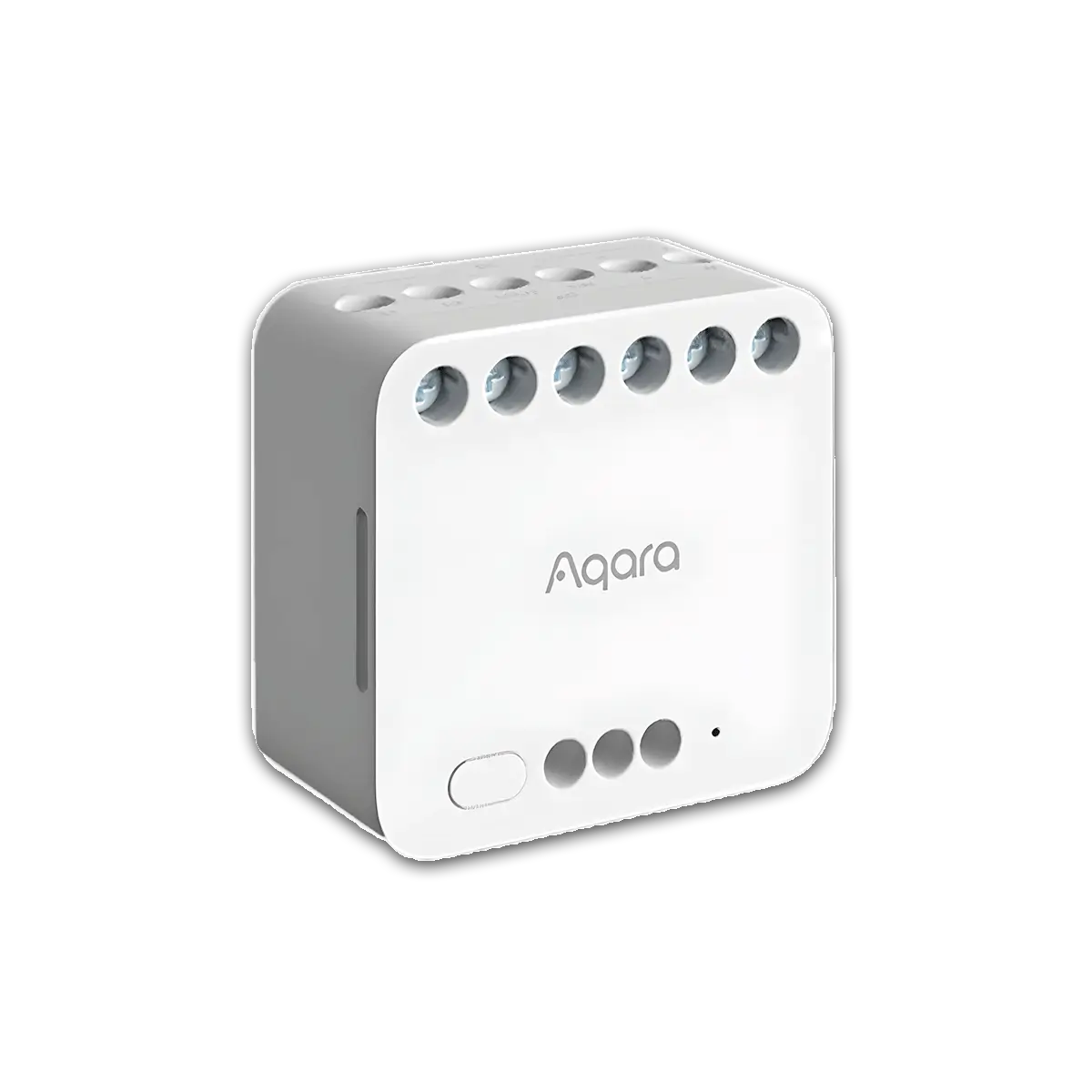

Dual Relay Module T2
| Colour | White |
| Compatible Devices | Aqara, Apple Home, Alexa, Google Home, IFTTT |
| Rated Parameters(AC) | 100-250V, 50/60Hz/Max.10A, Max 2500W (Incandescent Lamp); Max. 1A, Max. 250W (LED, CFL Fluorescent Lamp); Max. 1A, Max. 1/4 HP (Motor) M.1. |
| Rated Parameters(DC) | 24-30V: Max.10A, Max. 300W (Resistive Load); 30-60V: Max.1A, Max. 60W (Resistive Load); |
| Wireless Protocols | Zigbee |
| Hub Required | Yes（Zigbee 3.0 HUB） |
| Item Weight | 60 gr |

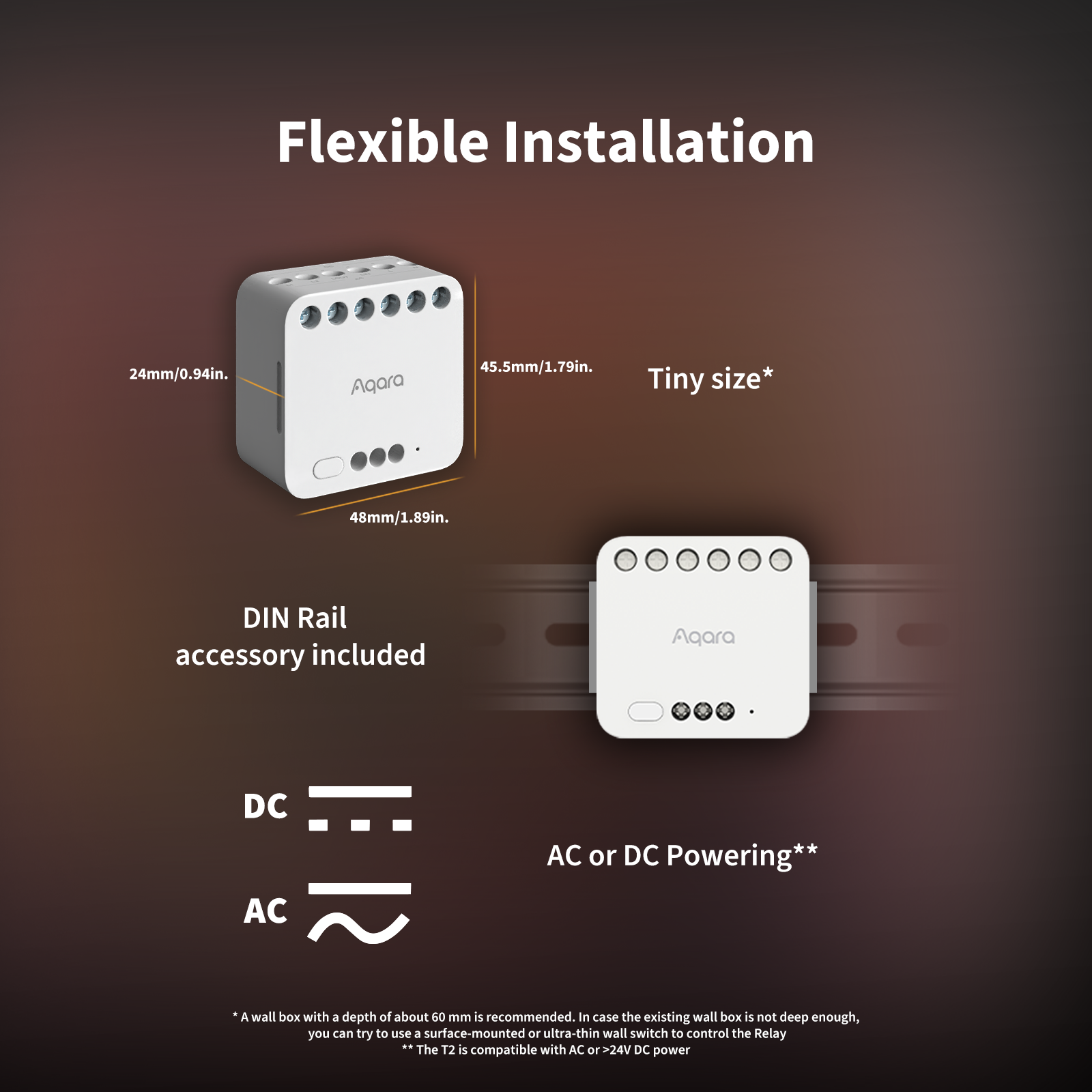

| Product Dimensions | 45.5 × 48 × 24 mm |
| Operating Temperature | -10°C ~ +40°C |
| Operating Humidity | 0 ~ 95% RH, no condensation |
| What is in the Box | Dual Relay Module T2 × 1, User Manual × 1, DIN Rail Accessory × 1, Jumper Wire × 1 |
Controller Curtains & Shades
Original price was: 4550L.4090LCurrent price is: 4090L.
(Save 460L)
In stock
Specifications
- ColorWhite
- Compatible PlatformsAqara, Apple Home, Alexa, Google Home, IFTTT, Wireless Protocol
- Wireless ProtocolZigbee
- Hub RequiredYes（Aqara Zigbee 3.0 HUB）
- Item Net Weight60 gr
- Rated Parameters(AC)100-250V, 50/60Hz/Max.10A, Max 2500W (Incandescent Lamp); Max. 1A, Max. 250W (LED, CFL Fluorescent Lamp); Max. 1A, Max. 1/4 HP (Motor) M.1.
- Rated Parameters(DC)24-30V: Max.10A, Max. 300W (Resistive Load); 30-60V: Max.1A, Max. 60W (Resistive Load);
- Product Dimensions45.5 × 48 × 24 mm
- Operating Temperature-10°C ~ 40°C
- Operating Humidity0-95% RH, without condensation
- Included ComponentsDual Relay Module T2 × 1, User Manual × 1, DIN Rail Accessory × 1, Jumper Wire × 1
